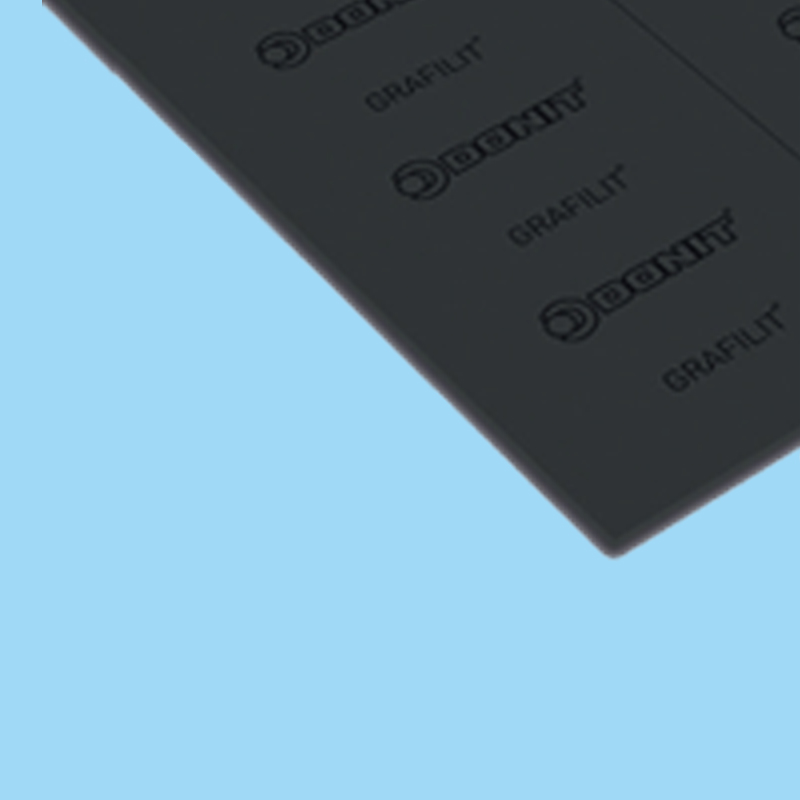

GRAFILIT® EM is an expanded graphite based material with expanded stainless steel insert, which enables applications with high operation pressures, including cycling operations. Even surface pressure distribution on gasket provides excellent thermomechanical properties and sealing characteristics, and increase blowout resistance. Therefore material is particularly suitable for high temperature applications in petrochemical industry and steam supply.

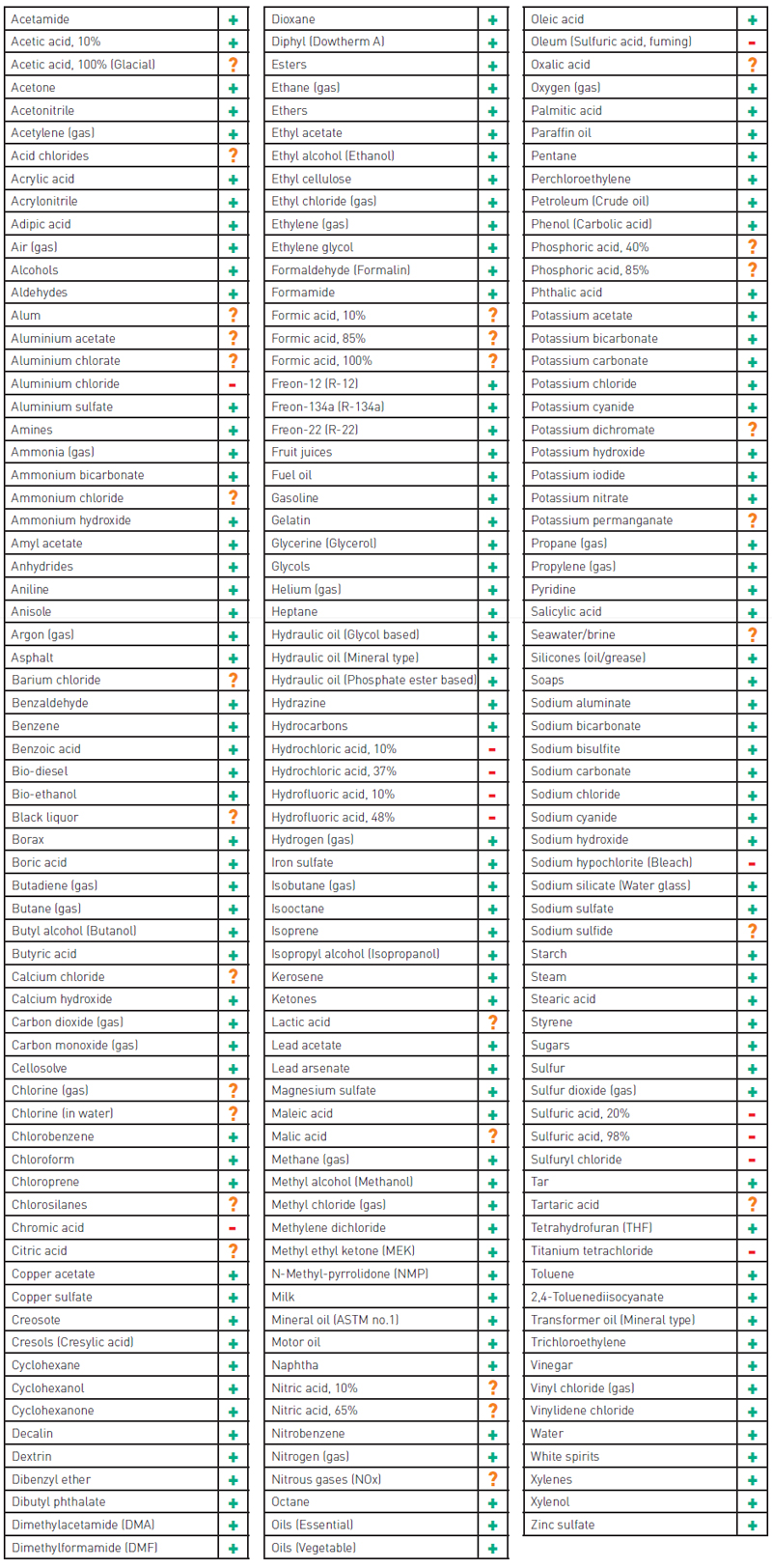

CHEMICAL RESISTANCE CHART

The recommendations made here are intended to be

a guideline for the selection of the suitable gasket

quality. Because the function and durability of the

products depend upon a number of factors, the data

may not be used to support any warranty claims.

+ Recommended

? Recommendation depends on operating conditions

- Not recommended

All information and data quoted are based upon years of experience in the production and operation of sealing elements. This data may not be used

to support any warranty claims. With its publication this latest edition supersedes all previous issues and is subject to change without further notice.
