Premium Flexible Graphite Spiral Wound Gasket China Factory and Suppliers
High-performance flexible graphite spiral wound gaskets from a leading China factory. Professional suppliers providing durable flange seals for high-temperature steam and LNG applications.

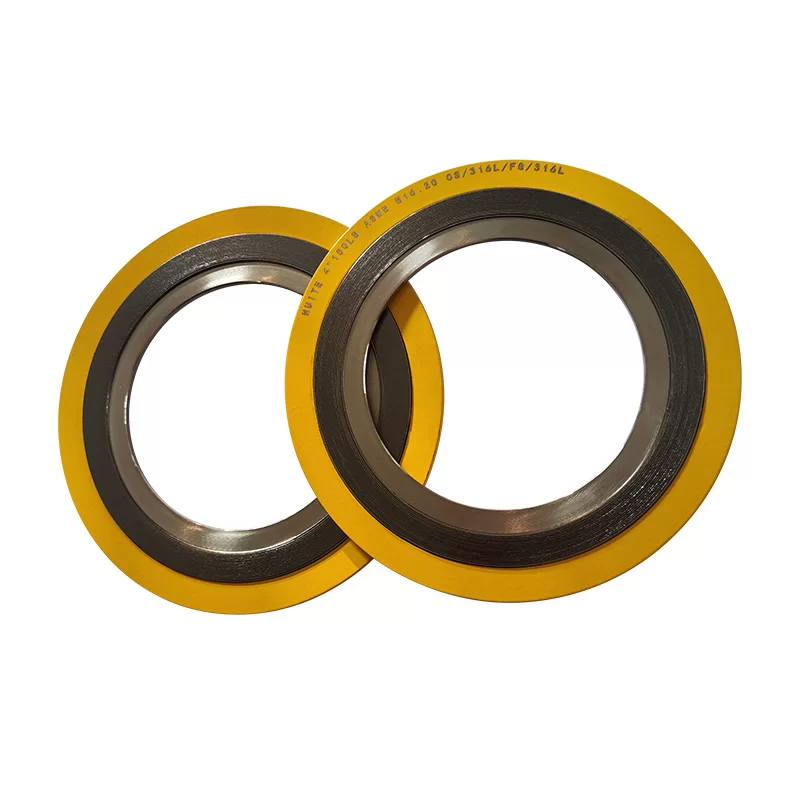

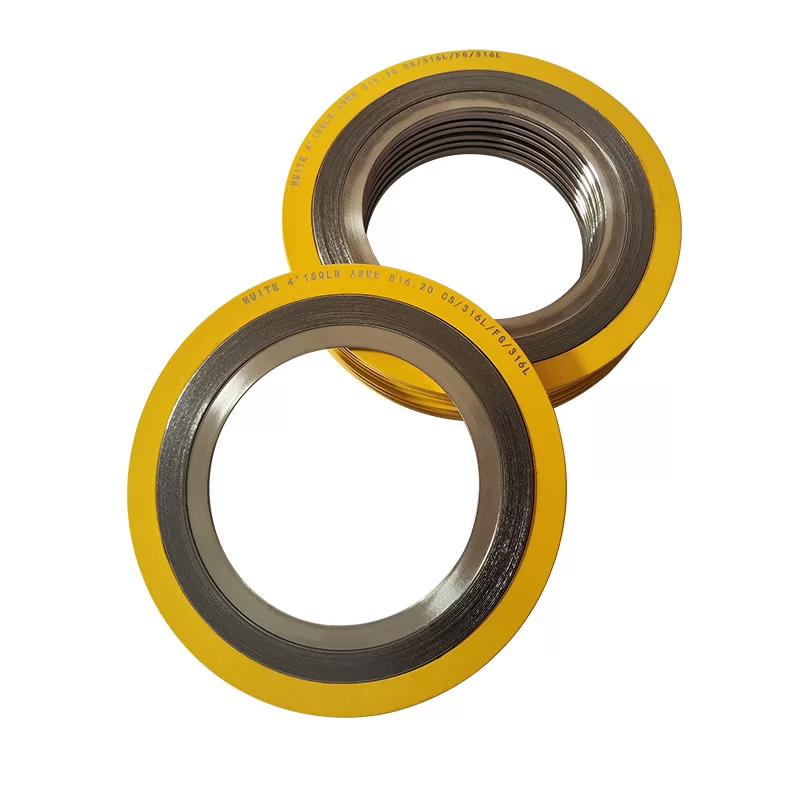

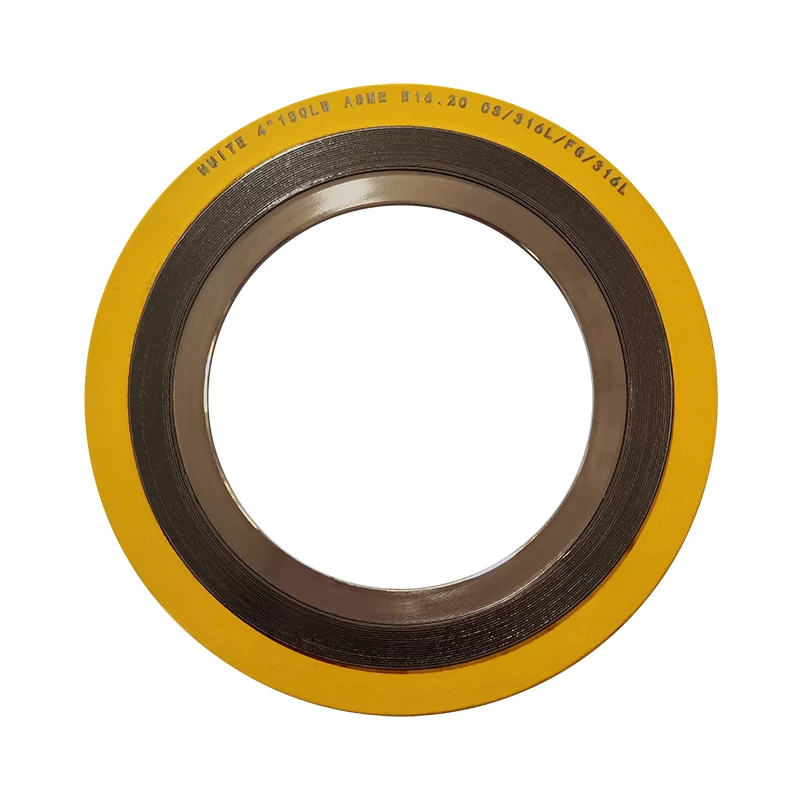

The Flexible Graphite Spiral Wound Gasket with a Carbon Steel (CS) Outer Ring is a premium high-performance sealing solution specifically engineered for critical industrial environments. By integrating the resilience of spiral-wound technology with the superior thermal stability and chemical resistance of flexible graphite, this gasket ensures a leak-proof seal even under extreme pressure fluctuations and severe temperature swings.
Tailored for the rigorous demands of rubber and plastic processing as well as general chemical manufacturing, the robust Carbon Steel outer ring provides essential centering and prevents over-compression. This structural reinforcement guarantees maximum integrity and long-term reliability for flange connections across a wide array of industrial piping systems, reducing downtime and enhancing operational safety.
Detailed Parameters
| Filler Material | Flexible Graphite | Outer Ring Material | Carbon Steel (CS) |
|---|---|---|---|
| Winding Strip | Stainless Steel / Alloy | Standard Design | ASME B16.20 / DIN / JIS |
| Temperature Range | Up to 450°C (Depending on metal) | Pressure Rating | High Pressure Capability |
| Sealing Efficiency | Excellent Compression Recovery | Chemical Compatibility | Highly Resistant to Acids/Alkali |
| Application Type | Flange Sealing / Piping | Outer Ring Function | Anti-blowout & Centering |
Key Advantages
Superior Sealing
The spiral-wound construction creates a high-resilience seal that effectively compensates for flange irregularities.
Extended Lifespan
Flexible graphite offers exceptional stability, significantly reducing the frequency of gasket replacements.
Thermal Stability
Maintains full structural integrity under extreme heat and cryogenic temperatures without degrading.
Blow-out Resistance
The CS outer ring provides critical reinforcement to prevent gasket blowout under high-pressure conditions.
Precision Fit
Perfect centering ensures uniform stress distribution across the flange face for a secure seal.
Versatile Use
Ideal for steam, oil, gas, and various chemical media within rubber manufacturing plants.
Product Gallery
Management Platforms
Inventory Control
Real-time tracking of gasket stocks to ensure immediate availability for urgent maintenance.
Quality Assurance
Strict adherence to international sealing standards through rigorous testing protocols.
Supply Chain Sync
Optimized logistics for the rubber parts industry to reduce lead times and shipping costs.
Technical Support
Expert guidance on material selection based on chemical compatibility and pressure requirements.
Order Customization
Flexible manufacturing for non-standard sizes and custom material combinations.
Life-cycle Monitoring
Predictive maintenance schedules to prevent unplanned downtime due to seal failure.
Investment Return Comparison
| Performance Metric | Standard Gaskets | Flexible Graphite SWG |
|---|---|---|
| Seal Lifespan | Short to Medium | Long-term Stability |
| Maintenance Cost | High (Frequent replacement) | Low (Reduced downtime) |
| Pressure Resistance | Moderate | Exceptional |
| Installation Speed | Standard | Fast (Centering ring aided) |
| Total Cost of Ownership | Expensive over time | Cost-effective Investment |
Frequently Asked Questions
Q: What is the primary benefit of using flexible graphite in spiral wound gaskets?
Flexible graphite provides superior chemical resistance and can withstand higher temperatures than PTFE or rubber, while offering excellent compressibility for a tighter seal.
Q: Why is a Carbon Steel (CS) outer ring necessary?
The CS outer ring prevents the winding from buckling under high bolt loads and ensures the gasket is perfectly centered during installation.
Q: Are these gaskets suitable for rubber manufacturing plants?
Yes, they are ideal for the high-pressure steam and chemical lines commonly found in rubber and plastics processing facilities.
Q: Can the inner ring be customized?
Yes, while the outer ring is Carbon Steel, we can provide various inner ring materials such as 304 or 316L stainless steel to suit your specific corrosion needs.
Q: How do I choose the correct size for my flange?
We recommend referring to ASME B16.20 or DIN standards. Our technical team can also assist if you provide the flange diameter and pressure rating.
Q: What is the difference between this and a Non-Asbestos Gasket?
Spiral Wound Gaskets with graphite offer higher pressure and temperature recovery compared to flat non-asbestos sheets, making them better for critical joints.
