Steam supply and heating systems are fundamental to a wide range of industrial operations, including power generation, petrochemical processing, district heating, shipbuilding, and large-scale manufacturing. These systems operate under high temperatures, fluctuating pressures, and frequent thermal cycling, which place severe demands on sealing components. Among the available sealing solutions, the reinforced graphite gasket has proven to be one of the most reliable and efficient choices for steam and heating applications.
By combining expanded graphite with stainless steel reinforcement, reinforced graphite gaskets offer exceptional thermomechanical performance, uniform surface pressure distribution, and high resistance to blowout. These characteristics make them particularly suitable for high-temperature steam pipelines and heating systems where safety, durability, and long-term sealing integrity are critical.
Why Reinforced Graphite Gaskets Are Essential for Steam Supply Systems
A reinforced graphite gasket is specifically engineered to withstand the extreme conditions found in steam supply systems. Steam pipelines often operate at elevated temperatures and pressures while experiencing continuous start-up and shutdown cycles. These operating conditions can cause conventional gasket materials to relax, crack, or fail prematurely.
Reinforced graphite gaskets address these challenges through:
Excellent heat resistance, maintaining sealing performance at high temperatures
Strong mechanical stability provided by stainless steel reinforcement
Resistance to pressure fluctuations and cycling loads
Reliable sealing under long-term steam exposure
These advantages make reinforced graphite gaskets a preferred sealing solution for steam distribution networks in power plants, industrial heating systems, and process facilities.
Reinforced Graphite Gasket Performance in Heating Systems
Heating systems, especially large-scale industrial and district heating networks, require gaskets that can operate continuously without leakage. A reinforced graphite gasket performs exceptionally well in such environments due to its ability to distribute surface pressure evenly across the flange face.
Uniform pressure distribution results in:
Improved sealing reliability
Reduced risk of localized gasket failure
Enhanced resistance to blowout
Longer service life under thermal cycling
Whether used in steam boilers, heat exchangers, or hot water pipelines, reinforced graphite gaskets provide consistent sealing performance that supports safe and efficient heating system operation.
Material Structure and Advantages of Reinforced Graphite Gaskets

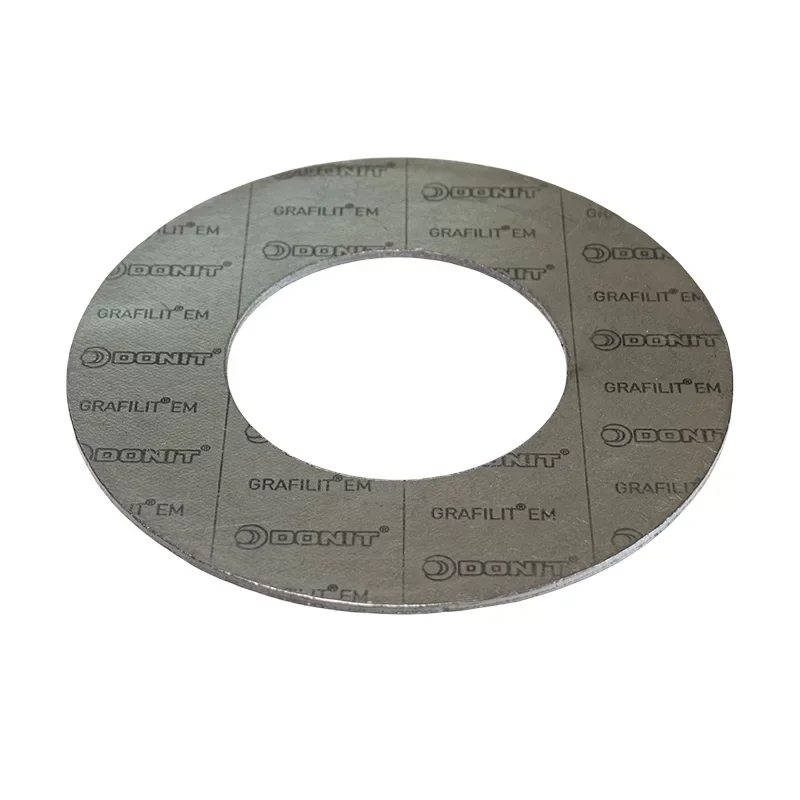

Reinforced graphite gaskets are manufactured using expanded graphite sheets combined with stainless steel reinforcement, typically in the form of inserts or tanged metal sheets. This structure offers a balance between flexibility and strength.
Key material advantages include:
Expanded Graphite
High temperature resistance
Excellent thermal conductivity
Chemical resistance to steam and process media
Stainless Steel Reinforcement
Increased pressure resistance
Improved dimensional stability
Enhanced blowout resistance
This composite structure allows reinforced graphite gaskets to maintain their sealing properties even under extreme operating conditions commonly found in steam and heating systems.
Applications of Reinforced Graphite Gaskets in Steam and Heating Industries
Reinforced graphite gaskets are widely used across multiple industries where steam and heating systems play a critical role, including:
Steam supply pipelines
Heating systems and district heating networks
Power plants and energy facilities
Petrochemical and chemical processing plants
Shipbuilding and marine steam systems
Paper and cellulose industries
Compressors, pumps, and valves
Their ability to withstand high temperatures and pressures makes them particularly suitable for petrochemical steam applications and industrial heating environments.
Choosing the Right Reinforced Graphite Gasket Manufacturer
Selecting a reliable reinforced graphite gasket manufacturer is essential to ensure consistent product quality and long-term sealing performance. A professional manufacturer offers more than just standard products—they provide technical expertise, material selection guidance, and quality assurance.
Key factors to consider when choosing a reinforced graphite gasket manufacturer include:
Experience in high-temperature and steam applications
Use of high-quality expanded graphite and stainless steel materials
Compliance with industrial standards and quality control systems
Ability to support both standard and customized gasket requirements
Working with an experienced manufacturer reduces the risk of gasket failure, leakage, and unplanned system downtime.
Custom Reinforced Graphite Gasket Solutions for Complex Systems
Not all steam and heating systems operate under identical conditions. Variations in flange standards, operating pressures, temperatures, and system design often require tailored sealing solutions. A custom reinforced graphite gasket allows for precise adaptation to specific application requirements.
Customization options may include:
Gasket thickness and density
Inner and outer diameter specifications
Type and thickness of stainless steel reinforcement
Surface finishing and special designs
By using a custom reinforced graphite gasket, engineers can optimize sealing performance, extend service life, and improve overall system reliability in demanding steam and heating applications.
Reinforced Graphite Gaskets Under Cycling Loads and High Pressure
One of the most challenging aspects of steam and heating systems is exposure to cycling loads, where pressure and temperature fluctuate repeatedly. Reinforced graphite gaskets are specifically designed to handle such conditions.
Their ability to recover after compression and maintain surface pressure ensures:
Stable sealing during start-up and shutdown cycles
Reduced relaxation and creep
Improved resistance to gasket blowout
Enhanced safety in high-pressure steam systems
This makes reinforced graphite gaskets particularly suitable for power plants and petrochemical facilities where cycling conditions are common.
Installation Considerations for Reinforced Graphite Gaskets
Proper installation is critical to achieving the full performance benefits of a reinforced graphite gasket. Key installation considerations include:
Ensuring flange surfaces are clean and undamaged
Correct gasket alignment to avoid uneven compression
Applying uniform bolt torque according to recommended procedures
Avoiding over-tightening that may damage the graphite material
Following proper installation practices helps maximize gasket lifespan and ensures reliable sealing in steam supply and heating systems.
Steam supply and heating systems demand sealing solutions that can withstand high temperatures, high pressures, and continuous thermal cycling. The reinforced graphite gasket, with its expanded graphite base and stainless steel reinforcement, delivers reliable sealing performance under these demanding conditions.
By working with a professional reinforced graphite gasket manufacturer and selecting a custom reinforced graphite gasket when needed, system operators can significantly improve safety, efficiency, and long-term reliability. For industries where steam and heating play a central role, reinforced graphite gaskets represent a proven, durable, and cost-effective sealing solution.
